• PDF
• TIF
• JPG
• DWG
• DXF
• AI
• PSD
• soon eDrawings...

This macro will create any or all of the file types above of any SolidWorks drawing that you have active on the screen.  This Macro saves so much time if you need to create even one file type all the time.  For instance that PDF for Doc Control, or that AI or PSD file for marketing.  Your just a click away.

This Macro is exclusive to SolidWorks Tips Daily Members.  This Macro is not to be distributed or shared without permission from the creator 3D iDesign, Inc dba SolidWorks Tips.

At times when the macro is started it will open behind SolidWorks.  If this happens just use your Keyboard and Alt + Tab to bring Quick Trans to the front.

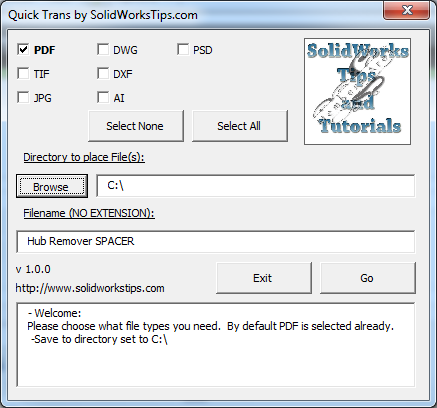

1. Check the file type(s) you need the drawing translated into.


2. Choose the directory you would like it to save your translated file to. (options coming soon)


3. Update the file name if different from current saved active drawing (No extension).


4. Press Go.

If you have any suggestions for additions to this macro or find any bugs, please send an email to quicktrans@solidworkstips.com.
